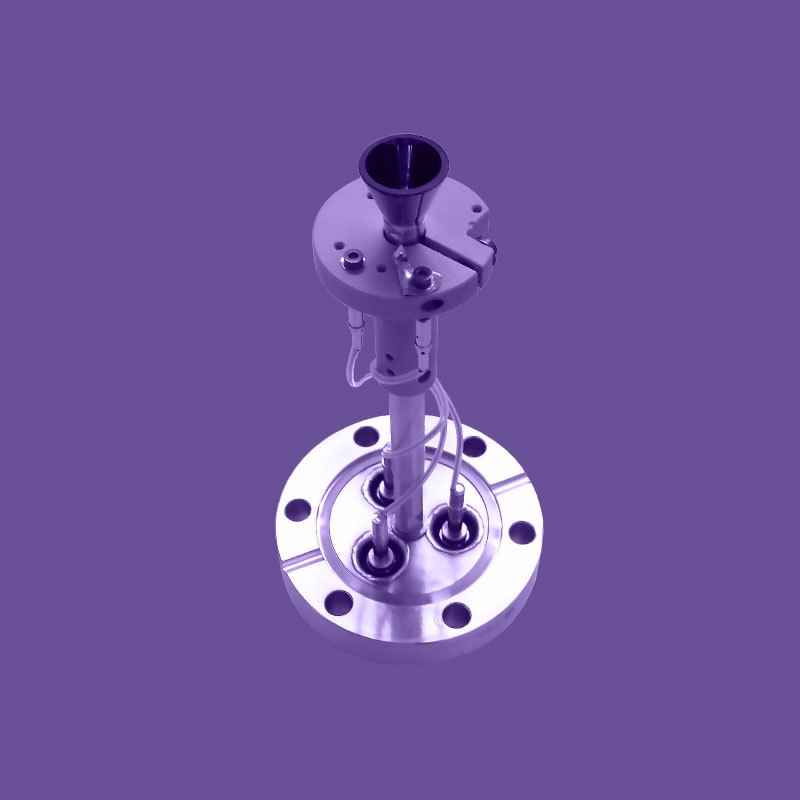

Channeltron Detectors

Channeltron based detectors for the detection of electrons, ions and photons for counting application.
They are mounted on standard CF flanges with feedthroughs for signal transfer and HV supply.

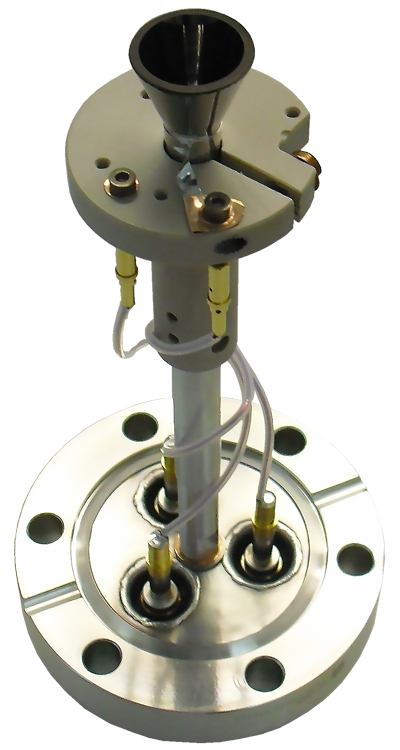

CEM4230 Detectors

Flange mounted channeltron detectors with 2-fold SHV and double-sided BNC feedthroughs and cabling for HV supply and pulse decoupling.

  • CEM type: Photonis 4230 Megasprialtron(TM),
  • open diameter of CEM fummel (nom.): 13.46mm,
  • 50Ohm matched in vacuum pulse decoupling,
  • floating possibility of detector front: +/-1000V
DOWNLOADS TECHNICAL DATA

Readout electronics and HV Supplies available for various measurement applications
