Time-to-Digital Converters

Time resolved measurement of norm-pulses with picosecond time-resolution. The Time-to-Digital Converters (TDCs) are compact, fast and user-friendly devices that are available with a variety of performance characteristics. Possible layouts include 19”-housings, standalone housings and NIM modules (2/12). Equipped with a high-speed USB 3.0 interface for data readout.

SC-TDC 1000 S-Series

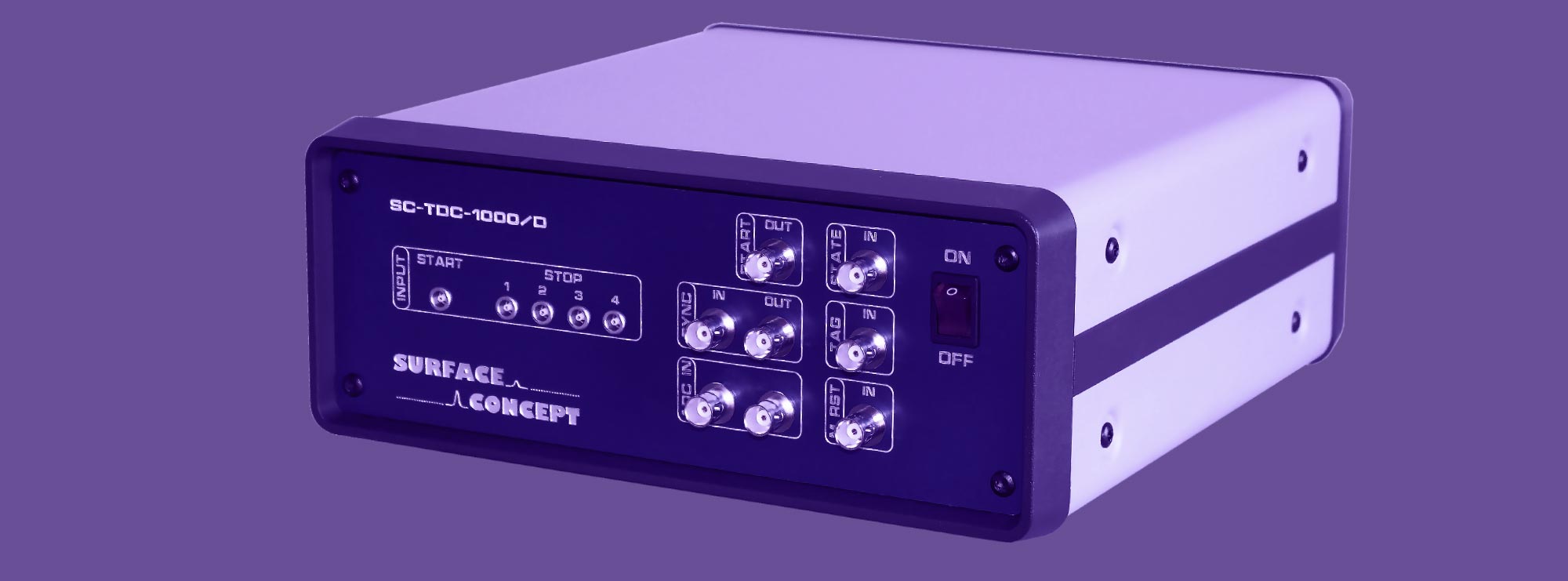

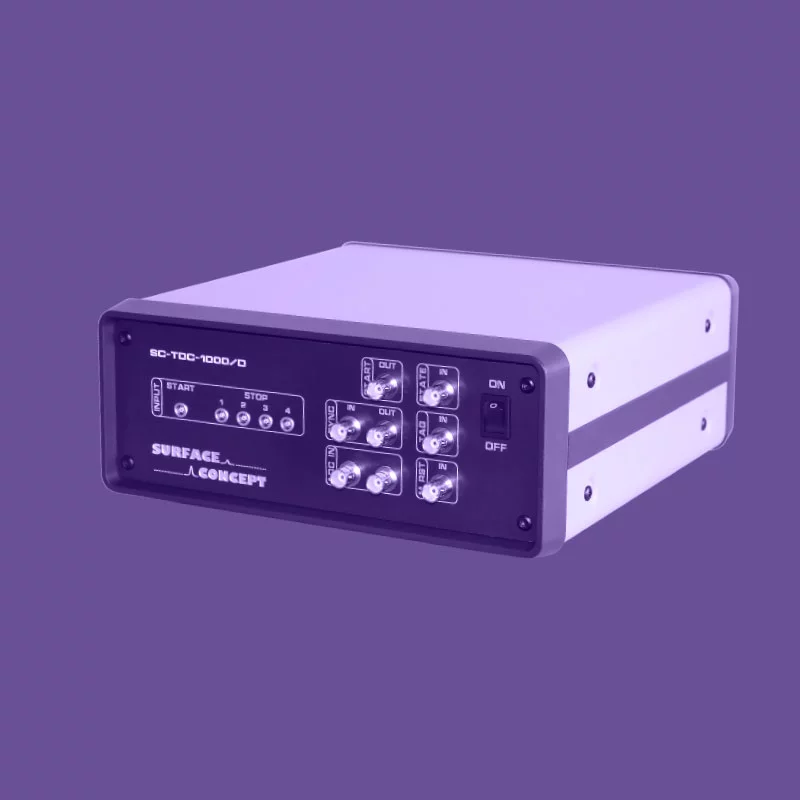

8 or 16 channel TDC in a table top housing with USB3.0 interface and extended Functionality for Experiment Synchronization

  • Digital time bin size (typ.): 82.3ps
  • Measurement range: unlimited in reference mode (10.5µs in start-stop mode)
  • Start-retrigger frequency (min. / max.): 0Hz/ 7MHz
  • Input pulse separation (same channel): typ. 5.5ns
  • Max. event rate (all channels): up to 80MHz

SC-TDC 1000 D-Series

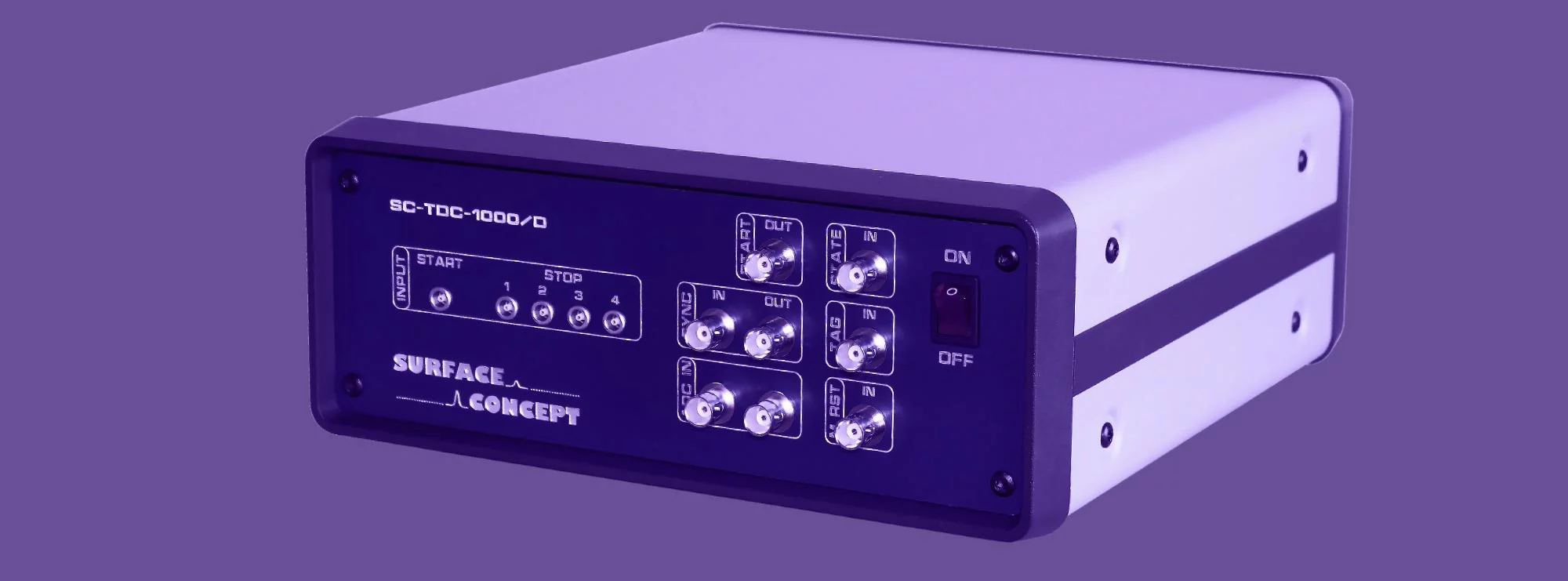

2 or 4 channel TDC in a table top housing with USB3.0 interface and extended Functionality for Experiment Synchronization

  • Digital time bin size (typ.): 27.4ps
  • Measurement range: unlimited in reference mode (40µs in start-stop mode)
  • Start-retrigger frequency (min. / max.): 0Hz/ 9MHz
  • Input pulse separation (same channel): typ. 5.5ns
  • Max. event rate (all channels): up to 80MHz

SC-TDC 1100 S-Series

8 channel TDC in a 2/12NIM housing with USB 3.0 interface

  • Digital time bin size (typ.): 82.3ps
  • Measurement range: unlimited in reference mode (10.5µs in start-stop mode)
  • Start-retrigger frequency (min. / max.): 0Hz/ 7MHz
  • Input pulse separation (same channel): typ. 5.5ns
  • Max. event rate (all channels): up to 40MHz
  • SYNC in/out for measurement synchronisation

SC-TDC 1100 D-Series

2 or 4 channel TDC in a 2/12NIM housing with USB3.0 interface

  • Digital time bin size (typ.): 27.4ps
  • Measurement range: unlimited in reference mode (40µs in start-stop mode)
  • Start-retrigger frequency (min. / max.): 0Hz/ 9MHz
  • Input pulse separation (same channel): typ. 5.5ns
  • Max. event rate (all channels): up to 80MHz
  • SYNC in/out for measurement synchronisation
