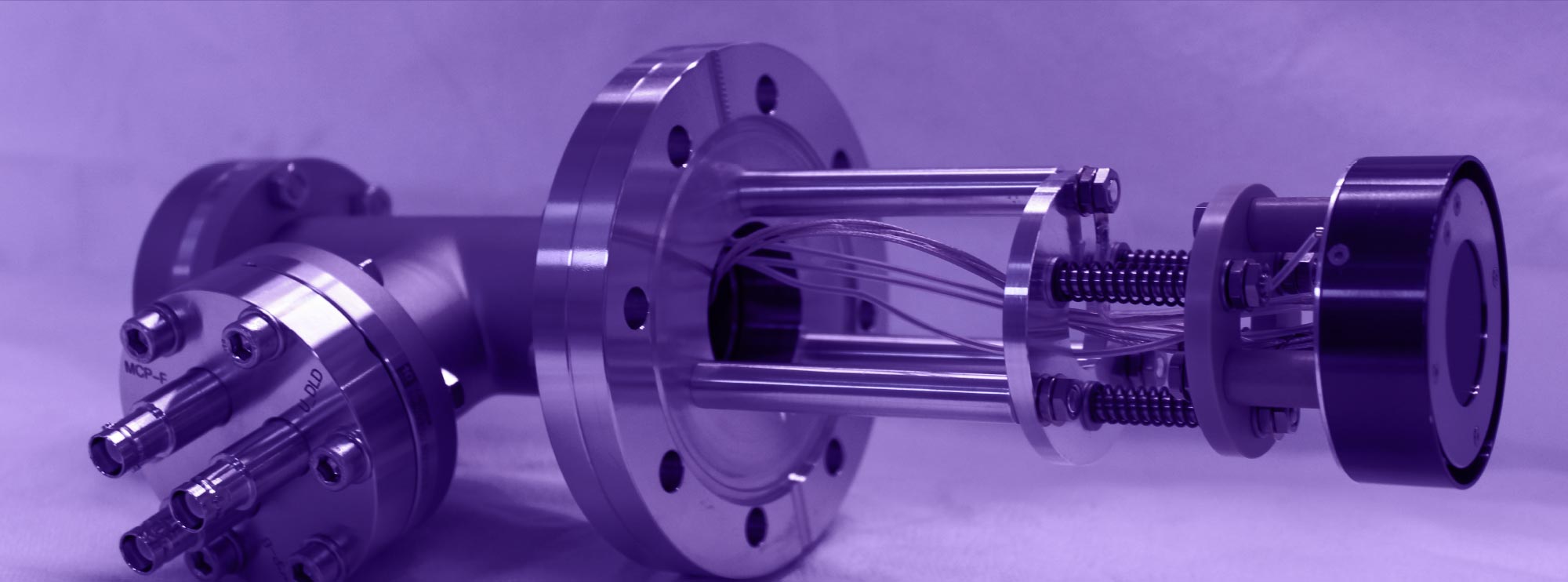

Custom Specific Delayline Detectors

Microchannel plate based detector packages with a custom specific delayline anode layout/active detection area, advanced high voltage stability and/or a custom specific mechanical layout for position and time resolved detection of electrons, ions and photons.
They come as complete packages including analouge readout electronics, time-to-digital converter, software package and optional HV power supply for a plug and play installation and operation.

Custom Specific Delayline Detector Packages

We do provide custom specific modifications of our existing standard detectors like mechanical modification or modification of the delayline anode as well as complete new CAD designs fitting to the unique customer specific application.

  • custom specific anode layout (e.g. central hole)
  • advanced high voltage floating stability (up to 15kV)
  • custom specific mechanical layout (e.g. nonstandard flange sizes)
DOWNLOADS TECHNICAL DATA

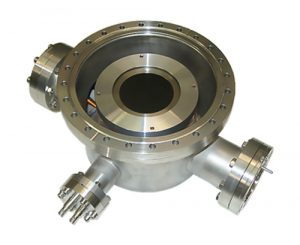

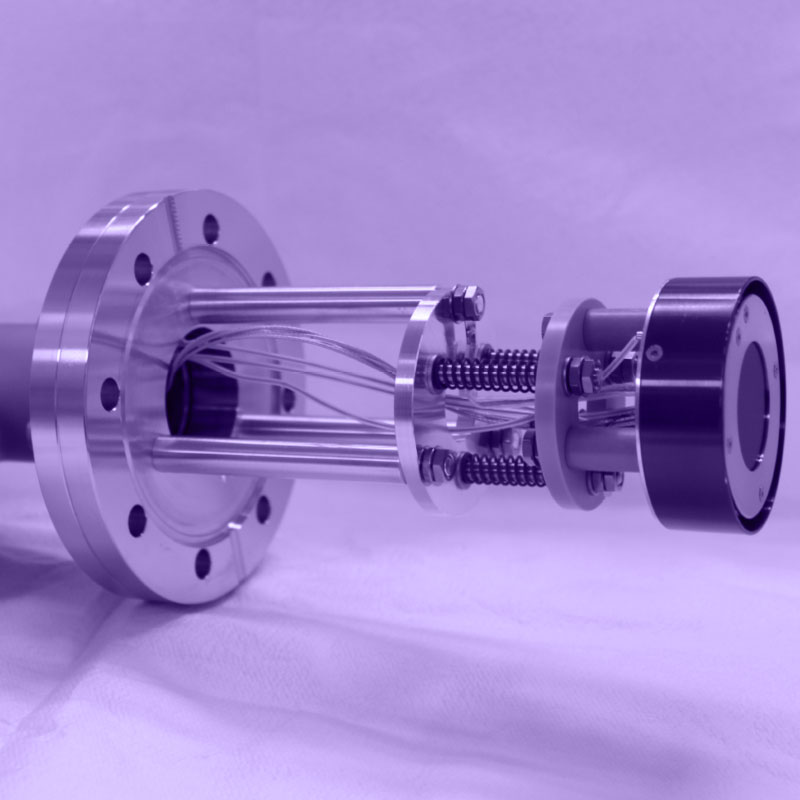

Examples of Custom Specific Delayline Detectors

Neutron Sensitive Delayline Detector Packages

Our Single Anode Delayline Detector Packages are also available for a position and time resolved detection of neutrons. This is enabled by using NOVA Scientific`s unique neutron sensitive NeuViewTM MCPs.

  • active area: 40mm and 80mm in diameter (120mm on request)
  • pixel no. (up to): 4800 x 4800
  • time resolution: ~ 100ns
  • max. random count rate: >= 5Mcps

For more information visit www.neutrondetector.com

DOWNLOADS TECHNICAL DATA

All detector packages include the following electronic components, depending on custom specific layout.


Amplifier Constant Fraction Discriminator Unit


Fast pulse processing unit for delayline detectors.

  • direct mounting to the signal feedthrough
  • 4x amplifiers
  • 4x constant-fraction-discriminator


Time-to-Digital Converter


Time measuring electronics with FPGA based integrated DLD readout logic.

  • number of stop inputs: 4
  • number of start inputs (reference clock): 1
  • measurement range: 0ns – 40µs in start-stop operation
  • USB3.0 interface for data readout
  • optional inputs/outputs for advanced measurement options
  • optional integrated HV supply


High Voltage Power Supply (optional)


2-channel HV supply for the supply of delayline detectors.

  • 2 HV channels for supply of MCP stack and DLD anode
  • touch display for manual control
  • Ethernet interface for external control
  • external reference input for floating operation of HV supply and detector
