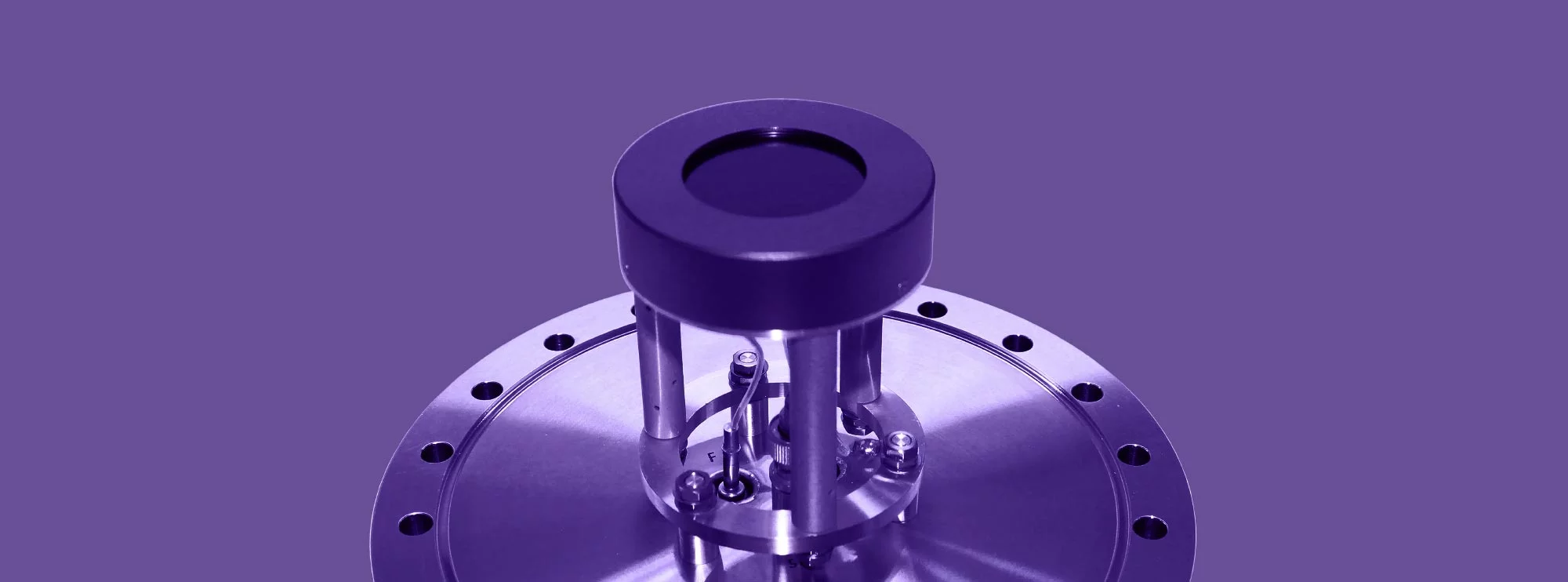

Metal Anode Based MCP Detectors

Microchannel plate based detectors with a single metal anode for event counting as well as for time resolved detection of electrons, ions and photons. The metal anodes are also available with a four quadrant segmentation for a multihit detection by a parallel and independent readout.
MCP detectors are available with different active areas and are mounted on standard CF flanges with feedthroughs for signal transfer and HV supply.

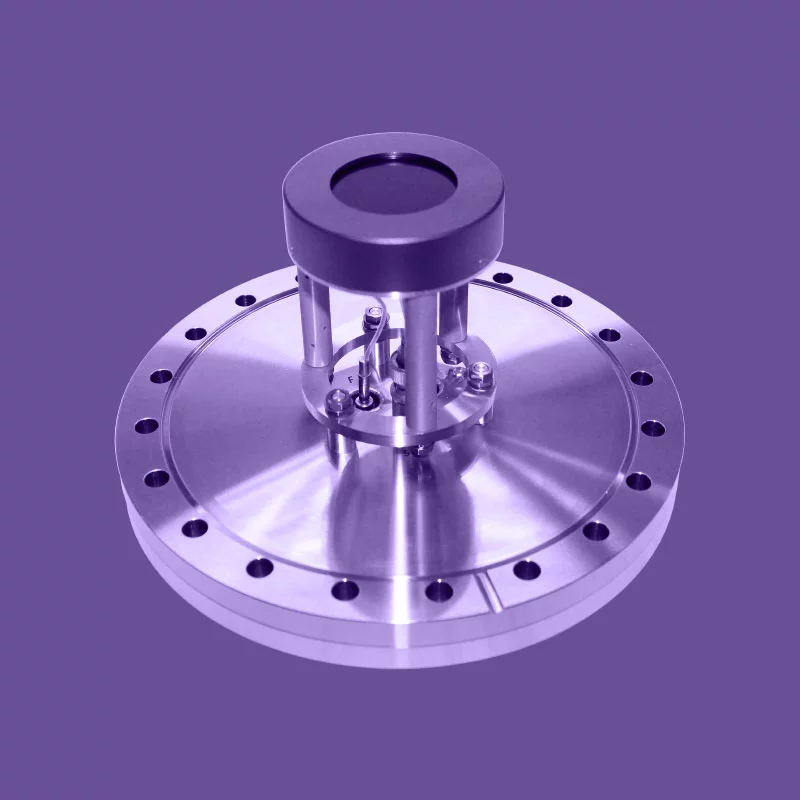

Single Anode Based MCPD18 Detector

Flange mounted, MCP based single metal anode detector with 2-fold SHV and double-sided BNC feedthroughs and cabling for HV supply and pulse decoupling.

  • active area: 18mm in diameter
  • 50Ohm matched impedance metal anode
  • possibility of a floating detector front: +/-1000V
DOWNLOADS TECHNICAL DATA

Single Anode Based MCPD25 Detector

Flange mounted, MCP based single metal anode detector with 2-fold SHV and double-sided BNC feedthroughs and cabling for HV supply and pulse decoupling.

  • active area: 25mm in diameter
  • 50Ohm matched impedance metal anode
  • possibility of a floating detector front: +/-1000V
DOWNLOADS TECHNICAL DATA

Single Anode Based MCPD40 Detector

Flange mounted, MCP based single metal anode detector with 2-fold SHV and double-sided BNC feedthroughs and cabling for HV supply and pulse decoupling.

  • active area: 40mm in diameter
  • 50Ohm matched impedance metal anode
  • possibility of a floating detector front: +/-1000V
DOWNLOADS TECHNICAL DATA

Single Anode Based MCPD65 Detector

Flange mounted, MCP based single metal anode detector with 2-fold SHV and double-sided BNC feedthroughs and cabling for HV supply and pulse decoupling.

  • active area: 65mm in diameter
  • 50Ohm matched impedance metal anode
  • possibility of a floating detector front: +/-1000V
DOWNLOADS TECHNICAL DATA

Single Anode Based MCPD80 Detector

Flange mounted, MCP based single metal anode detector with 2-fold SHV and double-sided BNC feedthroughs and cabling for HV supply and pulse decoupling.

  • active area: 80mm in diameter
  • 50Ohm matched impedance metal anode
  • possibility of a floating detector front: +/-1000V
DOWNLOADS TECHNICAL DATA

Custom Specific Anode Based MCP Detectors

We do provide custom specific modifications of our existing standard metal based MCP detectors like mechanical modification or modification of the metal anode itself, for example multi-fold segmented metal anodes for increased multi-hit capability. We also provide complete new CAD designs fitting to the unique customer specific application.

DOWNLOADS TECHNICAL DATA

Readout electronics and HV Supplies available for various measurement applications
