YAG Screen Based MCP Detectors

Microchannel plate based detectors with a single YAG crystal screen for smallest decay times for position resolved detection of electrons, ions and photons with µm spatial resolution.
The YAG screen based MCP detectors are mounted on standard CF flanges with a viewport and feedthroughs for HV supply.

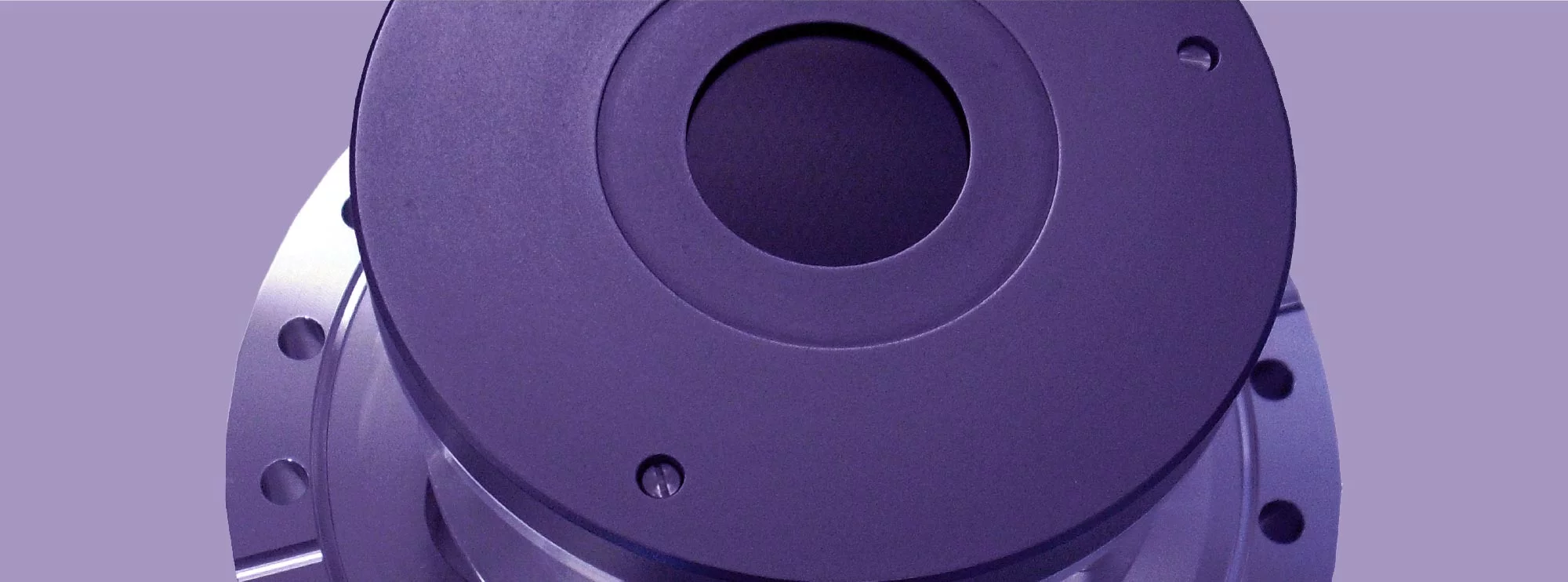

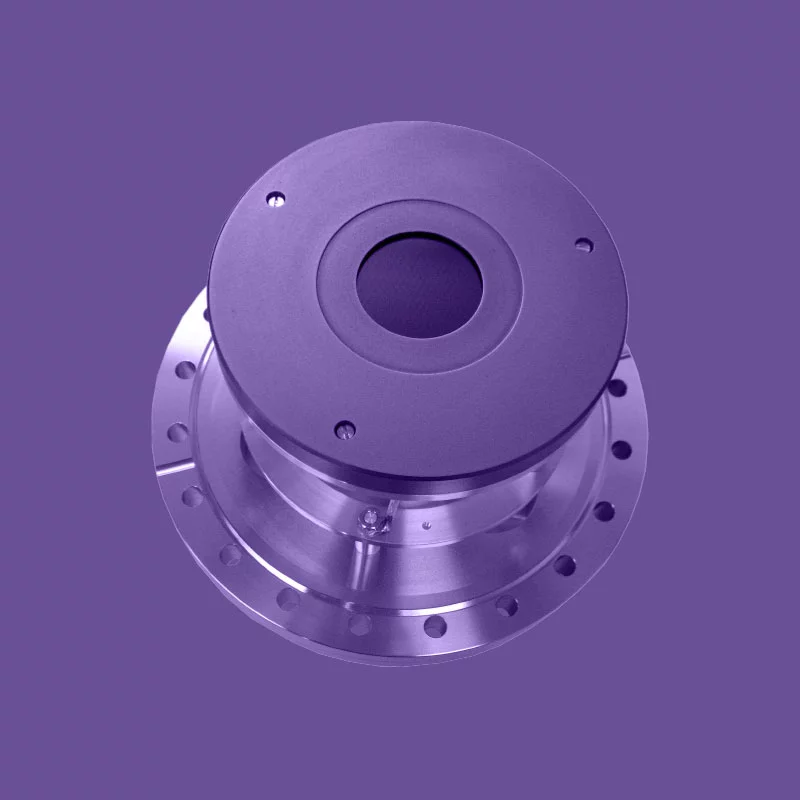

YAG Screen Based MCPD40 Detectors

Flange mounted, MCP based imaging detector with YAG image screen for fast imaging of electrons, ions, UV

  • active area: 40mm in diameter
  • YAG:Ce crystal with 20nm aluminium coating
  • decay constant of screen (typ.): 70ns
  • floating possibility of detector front: +500V/ -1000V
